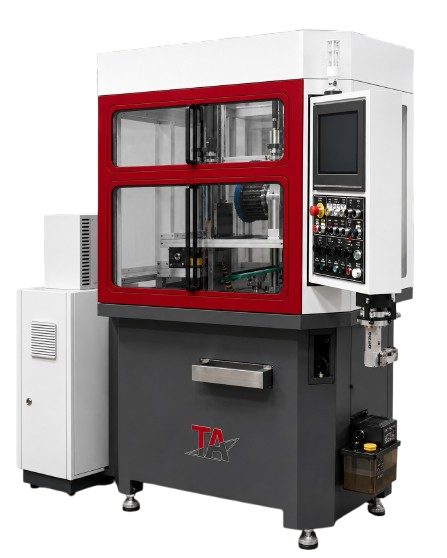

CNC AUTOMATIC CARBIDE ROD CUTTING /
PARTING OFF MACHINE CCM – A32

Applications

  • The machine is useful to cut Carbide rods / Hardened HSS rods to required length.
    The rod can be used for manufacturing of cutting tools such as Endmills, Drills, Reamers etc.
    (For carbide rod ~ diamond grinding wheel, For HSS rod ~ CBN grinding wheel)
  • The machine is more suitable for high volume cutting tool production set up.

Highlights

  • CNC 2 axes Automatic cutting / parting
    off machine
  • No wheel breakage due to Specially
    developed ‘Smartcut’ program
  • Servo-controlled rod pusher axis
  • Cutting length setting through
    programming
  • No set up change required
  • Built in coolant system
  • Machine guard for operator’s safety
  • Smooth cutting. No chip off.
  • Auto loader for rod placement on V block
    (Optional)
  • Unmanned operation possible for more
    than 30 minutes

Features

  • Bigger dia. Grinding wheel
  • Pneumatic auto clamping
    mechanism.
  • Cutting length setting through
    program
  • No set up change required
  • Simple programming inputs
    through
  • HMI (Dia., Length, Count)
  • Wrong input monitoring through
    pre-defined safe limits
  • High flow Coolant pump
  • Provision for filter paper
  • Automatic centralized lubrication
  • Easy to operate
  • Status Lamp
  • Part count
  • When equipped with Auto loader
    (optional) the machine can be
    kept in production without
    operator’s ntervention for amount
    of time

Safety Features

  • Auto fire extinguisher unit
    (optional)
  • Feed interlock with spindle ON.
  • Protected cutting zone
  • Machine lamp LED – Illuminated
    work space.
  • Supply phase sequence detector

Technical Specifications

  • Machine operation:
    Automatic
  • CNC controller: Syntec
  • Rod dia. Range: 3 to 32mm
  • Rod OAL length: up to 340
    mm
  • Min / Max cutting length: 5
    mm / 150mm
  • Wheel Diameter: 254 mm
    (10”)
  • Grinding Spindle: Up to 3000
    RPM ,
  • Timer belt driven
  • Work holding: Pneumatic top
    clamp (Auto)
  • Air supply :6 bar / 3 cfm
  • Coolant tank capacity: 60 L
  • Coolant flow: 40 LPM
  • Machine Base: Steel
    Fabricated structure
  • Machine weight: 300 kg
  • Machine Dimensions
    (WxDxH) 1700 x 700 x
    1750mm
  • Connected Load: 5 kVA
  • Electric supply : 415 V / 3
    phase
